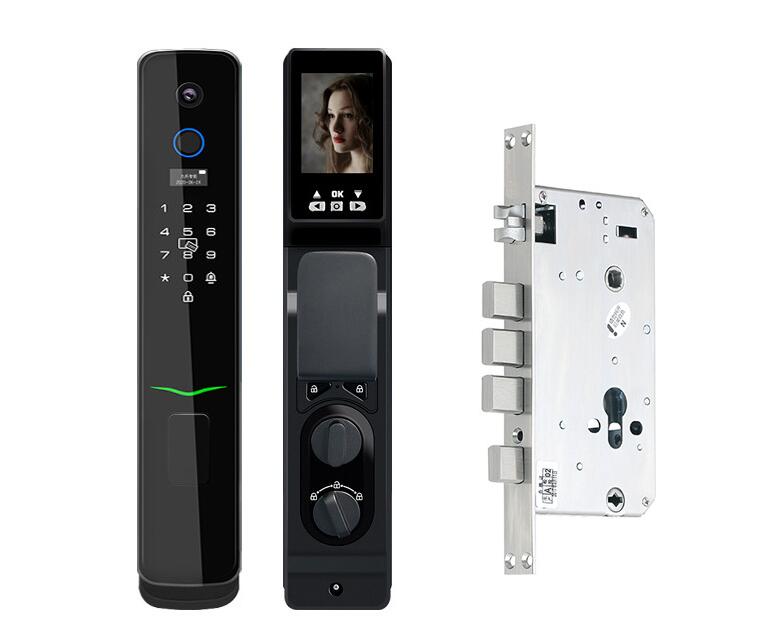

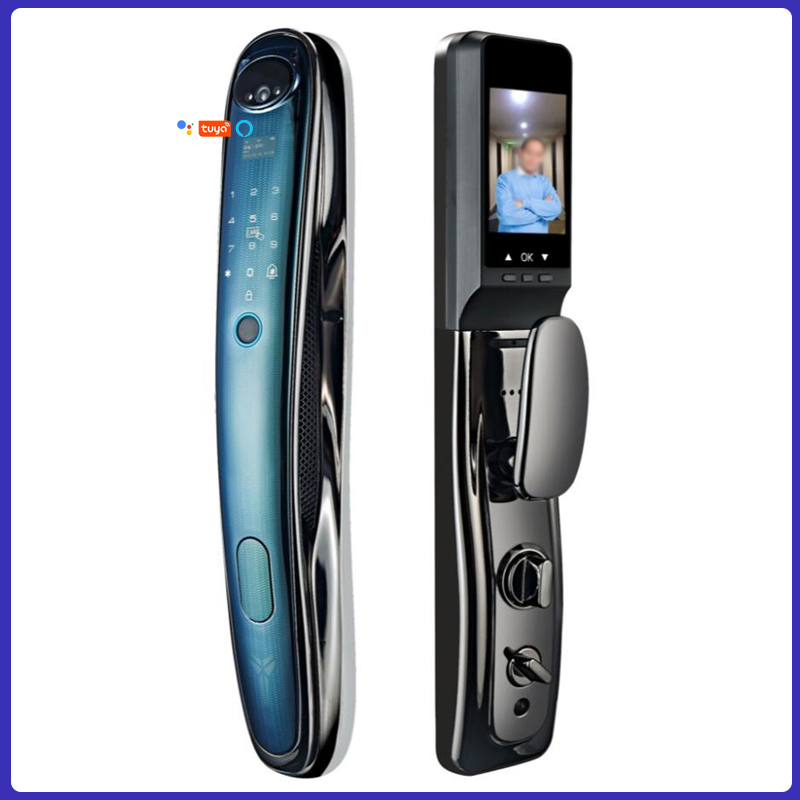

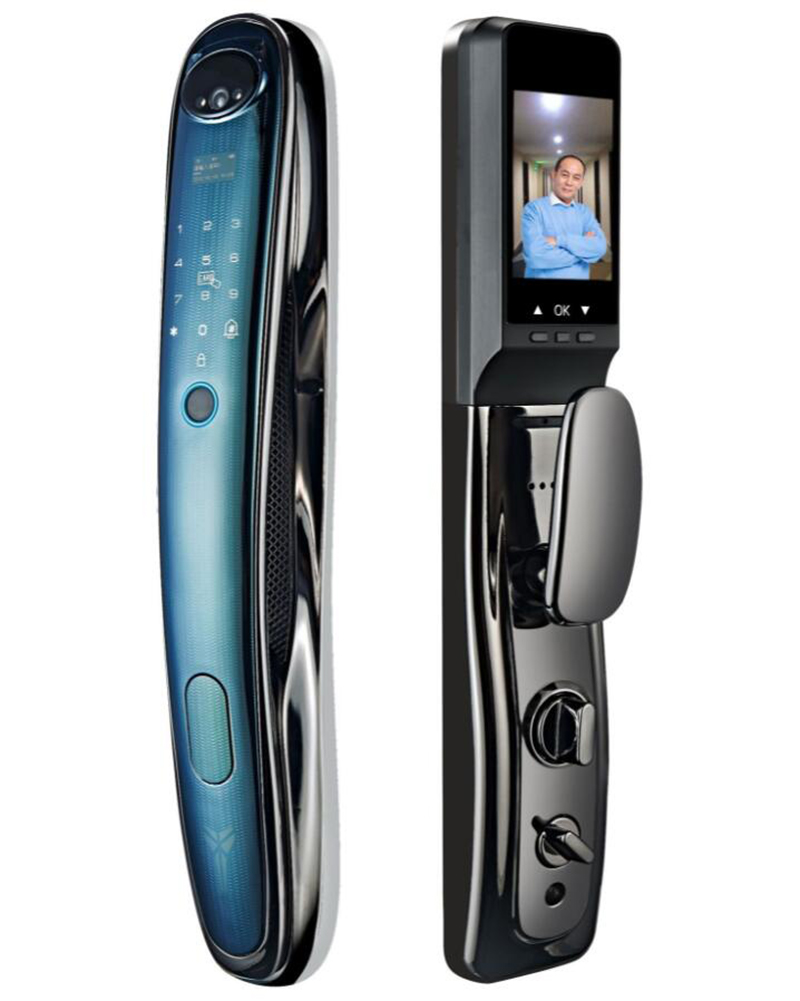

Smart face recognition electric door lock palm print door gate lock anti-theft home villa access control door lock

Power supply

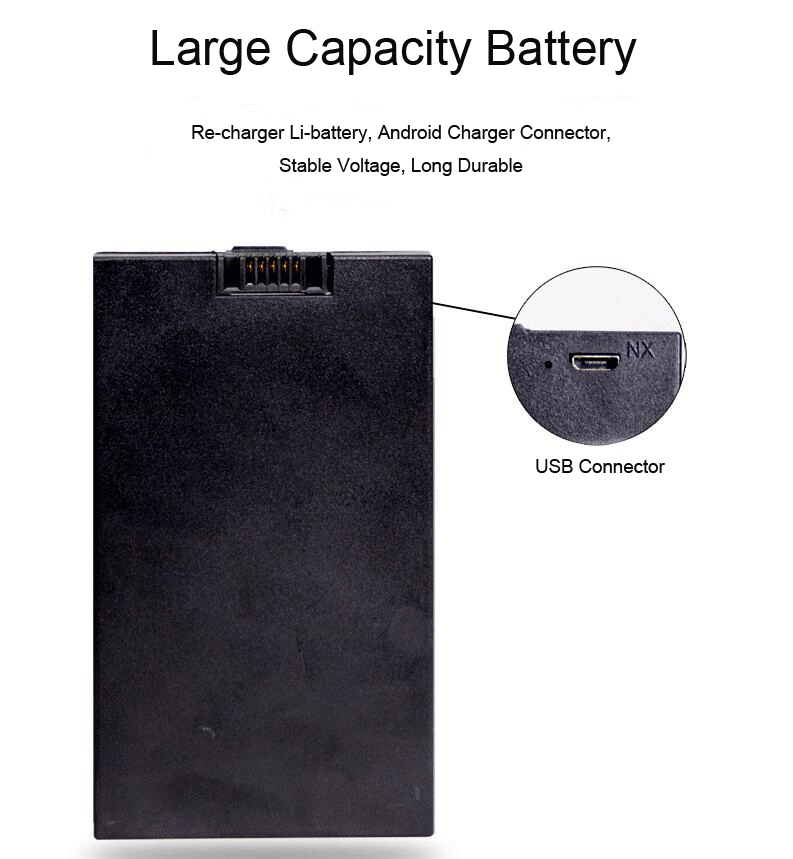

DC7.4V (lithium battery)

Undervoltage prompt

<DC6.8V

Emergency power supply

5V（Micro USB）

Quiescent current

<60uA (with remote control plus 20 uA)

Dynamic current

<2A

Network standard

WI-FI

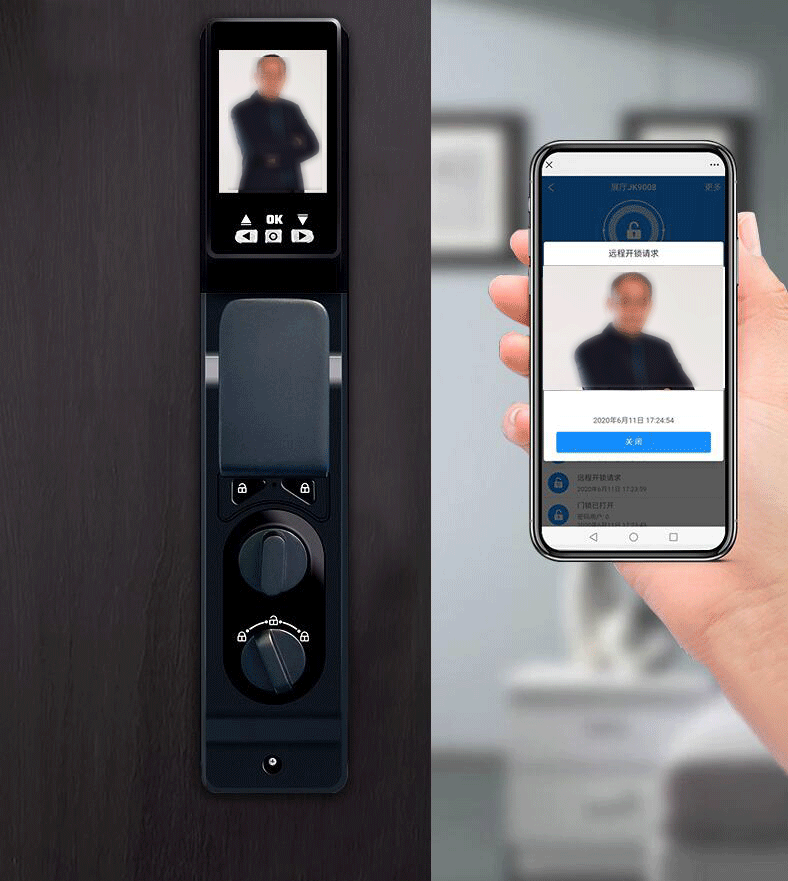

Remote control

Remote control distance 5-10 meters; unlimited number

Motor

Support 8V standard motor

Keyboard

Standard 12 keys (0-9, * #), can be increased to 15 keys

Lamp color: blue and white light optional; white light is recommended

Fingerprint capacity

A total of 300 users (100 fingerprint users, unlimited other users)

Password capacity

Card capacity

Card sensing distance

0~40mm

Working temperature

-10℃~60℃

Working humidity

45~90%RH

Antistatic ability (bare board) 》

》±8K

Storage temperature

-40~70℃

Storage humidity

45~90%RH

OLED screen

0.96 inch

Color: white light and blue light optional; white light is recommended

Horn

Front speaker: 8 ohm 0.5W; recommended diameter 20mm

Doorbell speaker: 8 ohm 0.5W; recommended diameter 36mm

Slide detection

It is recommended to wake up in place
